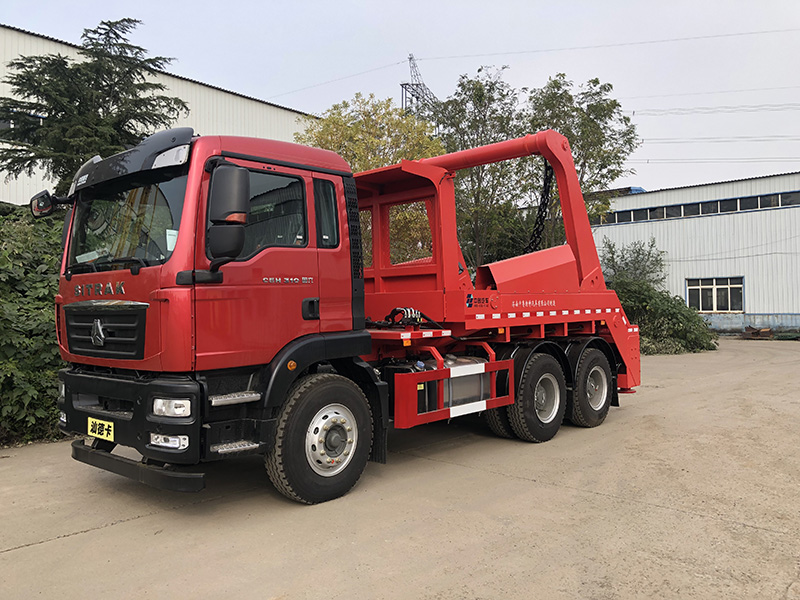

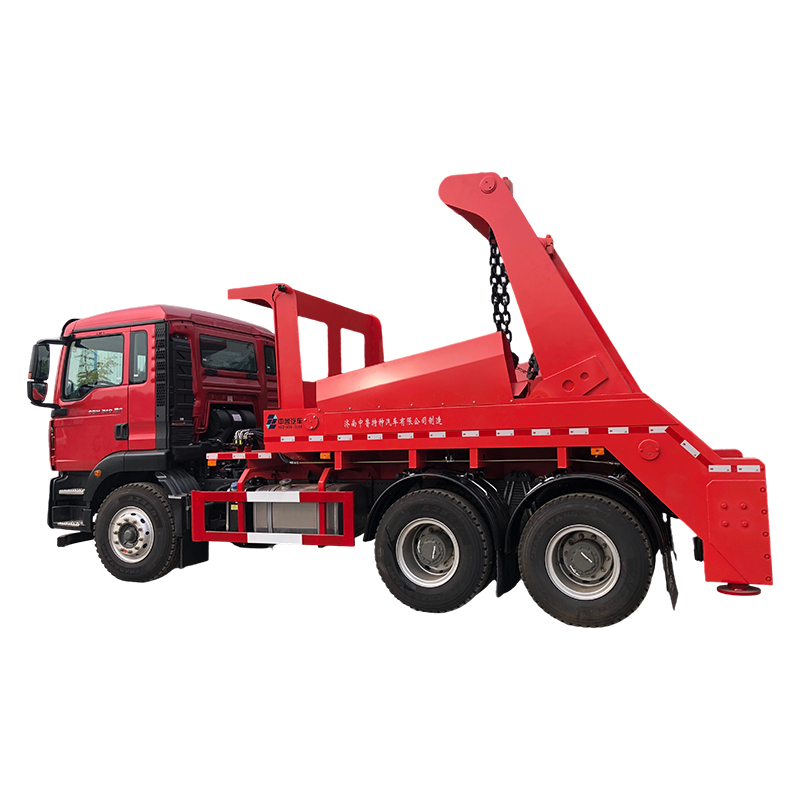

Swing Arm Garbage Truck
1. Seamless switching of lifting and transportation modes, single equipment can complete the whole process of "loading, transportation and unloading";
2. When unloading materials, the ground of the lifting bucket should be as vertical as possible to the ground, facilitating the dumping of materials.
3. The working boom can meet the requirements of loading and unloading buckets on the upper assembly platform.
4. There is a protective cover for the large arm cylinder on the working platform, which fully protects the cylinder.
5. The key components of the working hydraulic system have reliable performance and a long service life.

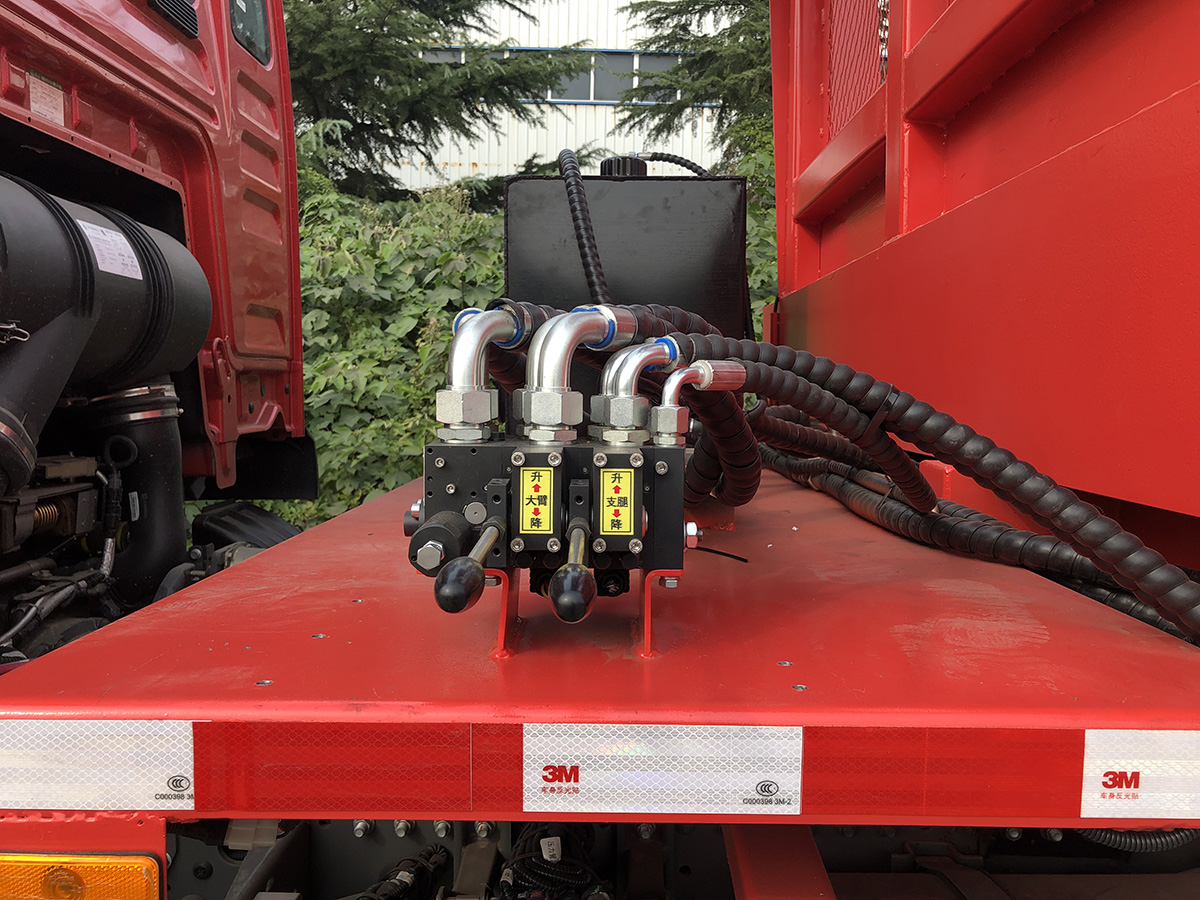

6. The control device adopts dual control of electric control and manual control.
7. It can operate within an ambient temperature range of -11℃ to 50℃

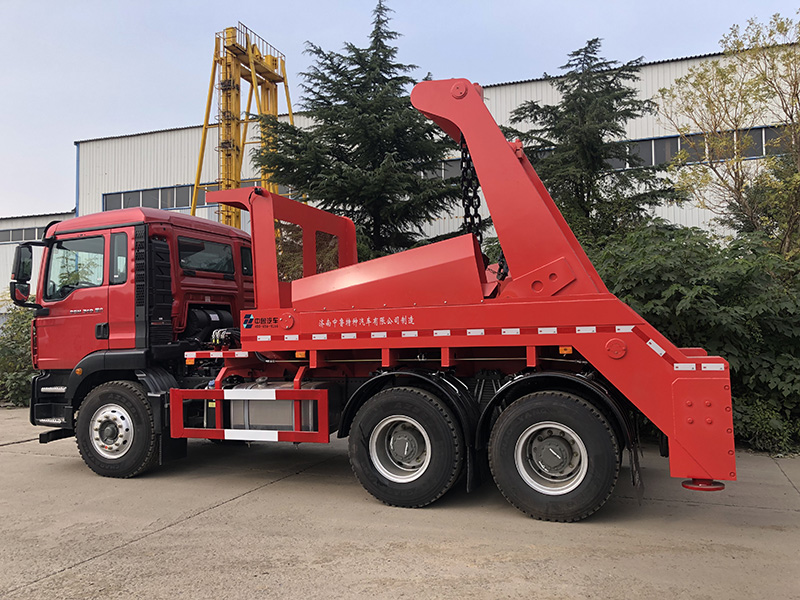

The Swing Arm Garbage Truck is composed of a type II chassis, an upper working platform, a working boom for loading and unloading, hydraulic outriggers, a lock hook cylinder and a control mechanism, etc. The bucket is provided by the user.

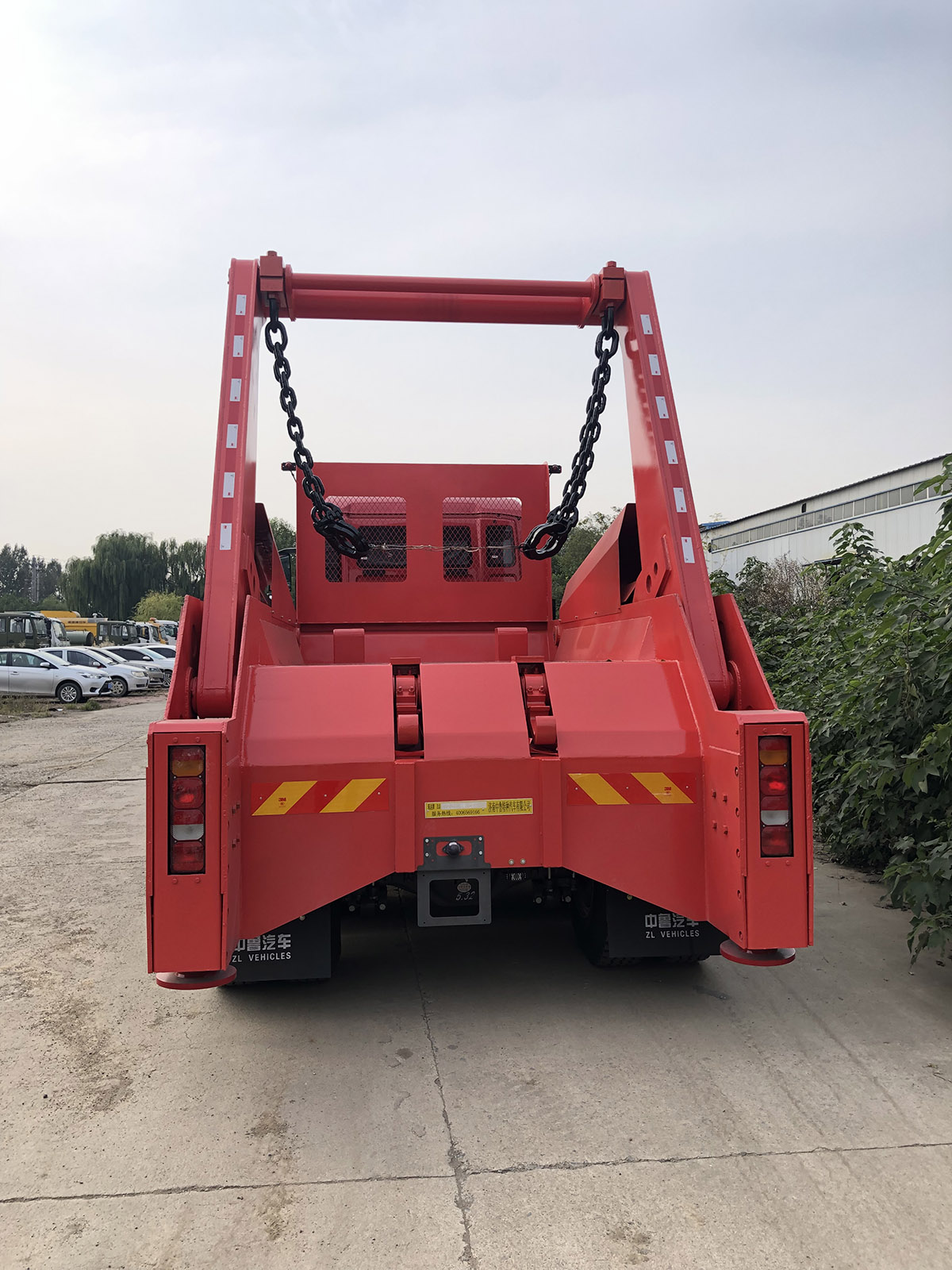

The main boom cylinders are arranged on both sides of the vehicle body. One end of the cylinder is pin-connected to the upper working platform, and the other end is pin-connected to the working boom. Due to the movement of the main boom cylinder, the working boom moves in a circular motion. At both ends of the working boom, four chains lower the bucket through circular motion for loading and unloading goods.

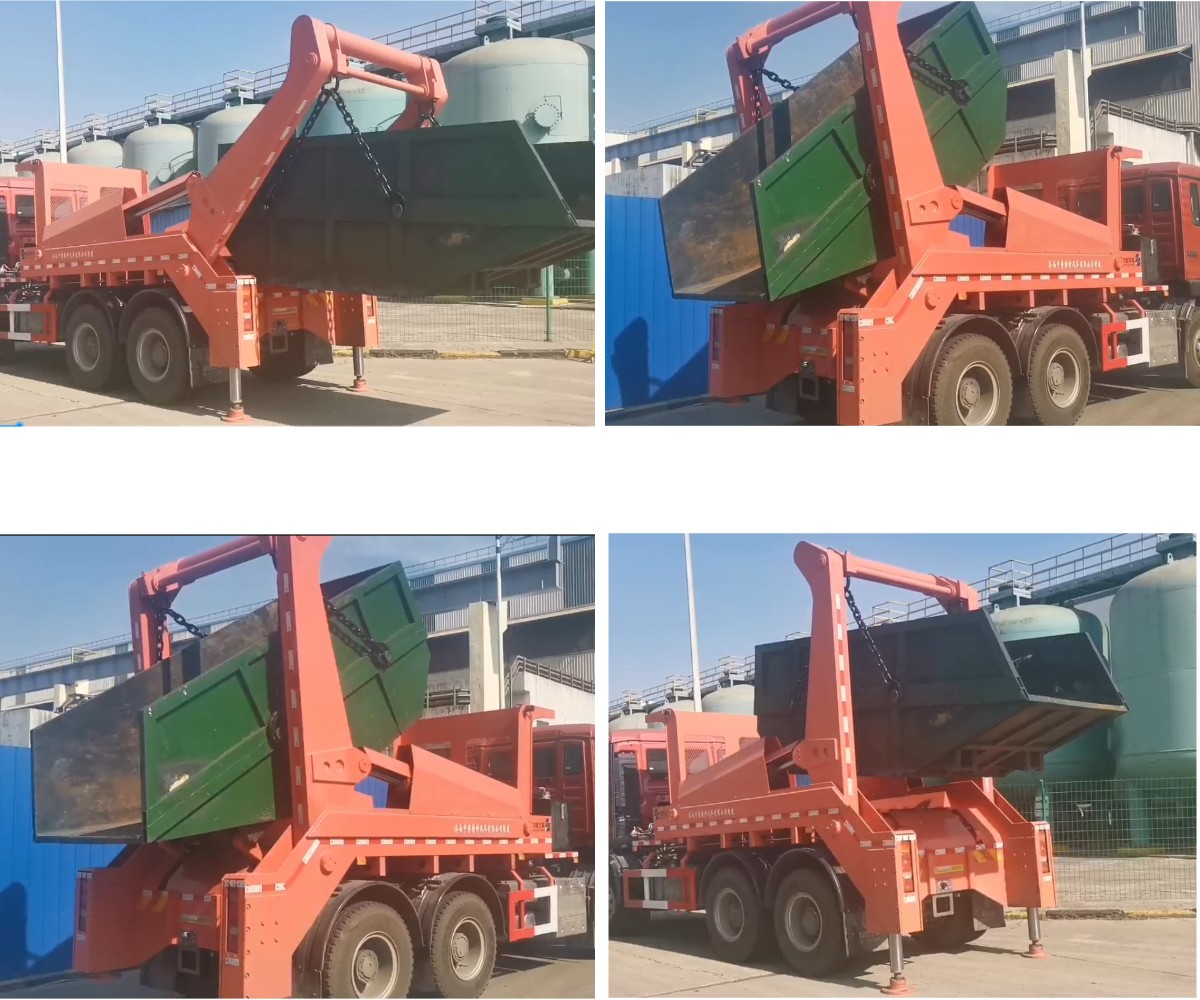

When unloading, the hook of the bucket is in the disengaged state. During the inclined unloading action, the hook holds onto the bucket and does not release it. Therefore, the bucket can be conveniently lifted up and down between the vehicle and the ground, and can also be tilted at a certain Angle (up to 90 degrees) on the vehicle for material dumping, thus achieving multiple uses with one vehicle and multi-point transportation, and improving work efficiency.
Parameters
Category | Parameter Item | Value |
Basic Params | Number of Axles | 3 |
Drive Form | 6X4 | |
Vehicle Dimensions | Overall Dimensions (L*W*H) | 7400*2500*3800 (mm) |
Number of Axles | 3 | |
Wheelbase | 3400+1350 (mm) | |
Front/Rear Track | 1250/1200 (mm) | |
Minimum Ground Clearance | 240 (mm) | |
Skip Internal Dimensions (L*W*H) | Provided by customer | |
Maximum Skip Loading Volume | 7 m3 | |
Maximum Gradability | 35% | |
Minimum Turning Radius | <16 m | |
Hydraulic System Rated Pressure | 20 MPa | |
Working Device Operation | Electric & Manual Dual Operation Modes | |
Hydraulic System Rated Pressure | 16 MPa | |
Maximum Skip Tipping Angle | 90° | |
Engine | Model | MC07.31-60 (MAN Technology, Germany) |
Displacement | 7 L | |
Emission Standard | GB3847-2005, GB17691-2005 China VI | |
Rated Power | 213 kW | |
Rated Speed | 2200 | |
Others | Transmission Model | HW13710 |
Cab Type | C5H Flat Roof, MAN Cab (Germany) | |
Drive Axle Ratio | 4.8 | |
Number of Tires | 10 | |
Tire Specification | (12) 11.00R20 16PR | |
Working Hydraulic Pump | Bermaq (USA) | |
Multi-valve | HAWE (Germany) | |
Balance Valve | HAWE (Germany) | |
Double Hydraulic Lock | HAWE (Germany) | |
Arm Cylinder, Leg Cylinder, Lock Hook Cylinder | Luzhou Huayuan Hydraulic | |
Hydraulic Oil Tank Volume | 125 L |
