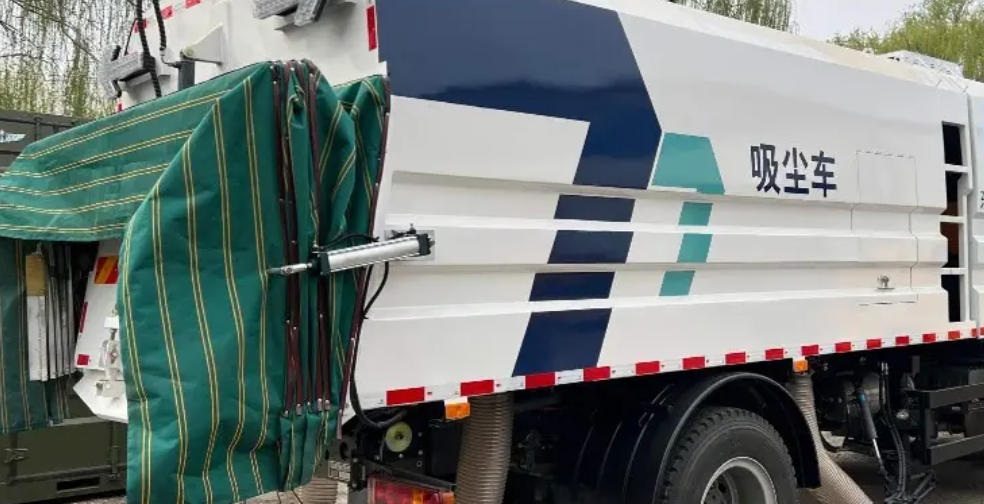

10m³ road vacuum sweeper machine

10m³ road vacuum sweeper machine

The vacuum cleaning vehicle is a new type of environmental sanitation vehicle for road cleaning that employs a dust removal and filtration system. It has replaced the traditional method of using rotating brushes to sweep the road surface used by previous street cleaning vehicles. Instead, it adopts the working principle of negative pressure direct suction to complete the operation. Through the dust removal and filtration system of the vehicle and the automatic pulse vibration dust removal system, it effectively reduces dust pollution, simultaneously filters out inhalable particles, improves air quality, reduces the content of inhalable particles in the air, and enhances the respiratory health of the people.

The ZLQ series of vacuum trucks from Jinan Zhonglu Special Vehicles Co., Ltd. feature no secondary dust emission, high dust removal efficiency, and high-level intelligence as their core advantages. They are suitable for dust control and cleaning operations in various scenarios such as municipal sanitation, industrial plants, and transportation hubs. Here is a detailed introduction:

Core advantages

Pure suction operation, eliminating secondary dust emission: Using negative pressure suction technology, there is no stirring of dust by the brush, combined with a multi-level filtration system (filter cartridge + dust collection box), the dust removal rate reaches 99%, capable of capturing dust ranging from several tens of micrometers to 160mm particles, especially suitable for high-dust environments.

Efficient cleaning and intelligent control

Operating efficiency: 50,000 - 70,000㎡/h, a single vehicle is equivalent to 40 + workers, driven by an auxiliary engine with a fan and working mechanism, without affecting the chassis power.

Optional PLC intelligent touchscreen control system, one-click start and stop operation, real-time monitoring in the driver's cabin, supports dry and wet mode switching, can operate in rainy and snowy weather.

Reliable structure, convenient maintenance

The suction cups are fully floating and follow the movement, adapting to complex road conditions such as speed bumps; the left and right sweeping discs can operate independently or cooperatively, reducing obstruction and wear.

Equipped with a hand pump for emergency lifting, maintenance-free centrifugal fan, dust suppression spray, a high-pressure water pump + 20-meter reel gun for self-cleaning and targeted flushing.

Multi-functional compatibility, flexible scenarios: Supports dry suction / wet suction switching, can be equipped with snow removal shovels and other attachments to achieve integrated cleaning, dust suppression, and flushing, meeting all-weather and multi-condition requirements.

Main application scenarios

Scenario type Typical application locations Core requirements

Municipal sanitation Primary roads, squares, residential areas, parks No dust emission, improving environmental quality

Transportation hubs Highways, airports, docks, tunnels, bridges Highly efficient cleaning, ensuring traffic safety

Industrial plants Steel mills, cement plants, coal yards, mixing stations, mines Managing production-related dust, meeting environmental protection standards

Construction and logistics Construction sites, open-air storage areas, port cargo yards Removing construction / transportation dust, suppressing pollution spread

Summary of applicable value

This series of vacuum trucks, with military-grade manufacturing standards and customization capabilities, has significant environmental protection and efficiency advantages in metallurgy, coal, and municipal sectors. It is particularly suitable for high-dust enterprises and municipal sanitation systems worldwide, helping enterprises meet emission standards and reduce labor costs.
