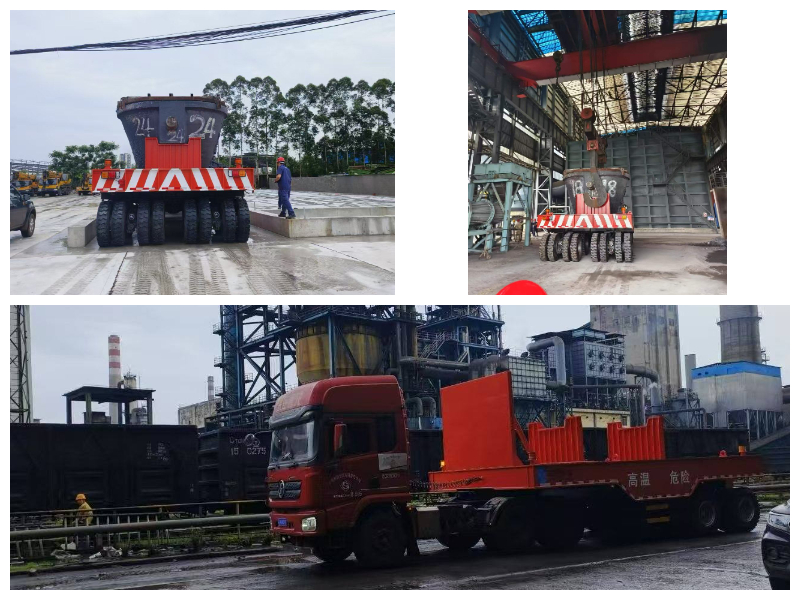

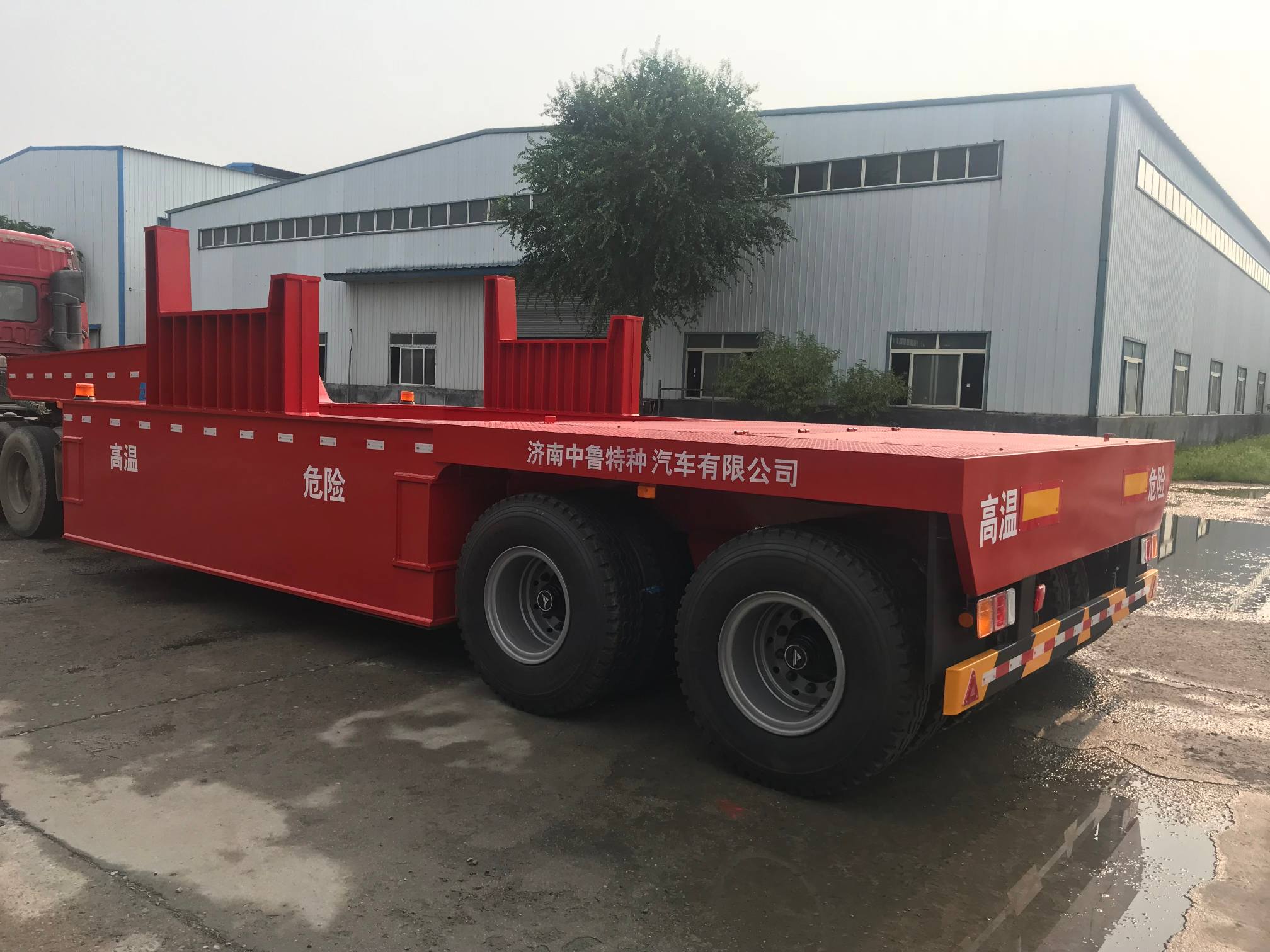

Fixed-Type Hot Metal Car

1.The fixed-type hot metal car is a special heavy-duty transportation equipment in the metallurgical industry. Its core function is to realize the short-distance precise transportation of high-temperature hot metal from the blast furnace tapping yard to the steelmaking workshop, casting machine and other stations in the steel production process, and it is one of the key equipment connecting the "hot metal - molten steel" smelting chain. Its tank body is rigidly fixedly connected with the frame, without complex tilting mechanism, and has a simple and stable structure. It is mainly suitable for the hot metal transportation needs of fixed routes and fixed stations in metallurgical enterprises. It can carry high-temperature hot metal of 1300–1500℃, with a capacity ranging from 35 tons to 140 tons and above. It is widely used in various large and medium-sized iron and steel complex enterprises, and is the basic logistics equipment to ensure the continuous and efficient operation of steel production.

2.Without complex hydraulic or mechanical tilting system, the core components adopt rigid connection, which reduces wearing parts and fault points, lowers the equipment failure rate, and avoids the operational risks that may be brought by the tilting mechanism. It meets the safety redundancy design requirements of metallurgical equipment and can operate stably in harsh working conditions of high temperature, high dust and strong vibration for a long time.

3.The operation process is simple, no professional tilting operation skills are required, and operators can take up their posts after simple training; The equipment structure is simple, and daily maintenance mainly focuses on the inspection of the tank insulation layer, the fastening of the frame connection parts and the lubrication of the bogie, with few maintenance procedures and low cost, which can effectively reduce the enterprise's equipment operation and maintenance investment.

4.The inner part of the tank is lined with high-quality refractory bricks and other thermal insulation materials, and some models are equipped with an active + passive collaborative heat dissipation system, which can effectively reduce the temperature drop of hot metal, control the temperature drop of hot metal within a reasonable range, reduce energy consumption in the steelmaking process, and at the same time help the realization of advanced processes such as "one ladle to the end", improve production efficiency and reduce enterprise production costs.

5.The fixed-type hot metal car is mainly used inside metallurgical enterprises, and is mainly suitable for the following scenarios: after tapping from the blast furnace, transporting hot metal to the steelmaking workshop, directly injecting it into the steelmaking furnace or mixing iron furnace for storage; transporting hot metal to the front of the casting machine for casting iron block operation; during the maintenance or temporary shutdown of steel production, it is used for temporary storage of hot metal to avoid hot metal waste. It is suitable for the advanced "one ladle to the end" process, which can reduce the tank tipping operation, reduce the hot metal temperature drop and energy consumption.
