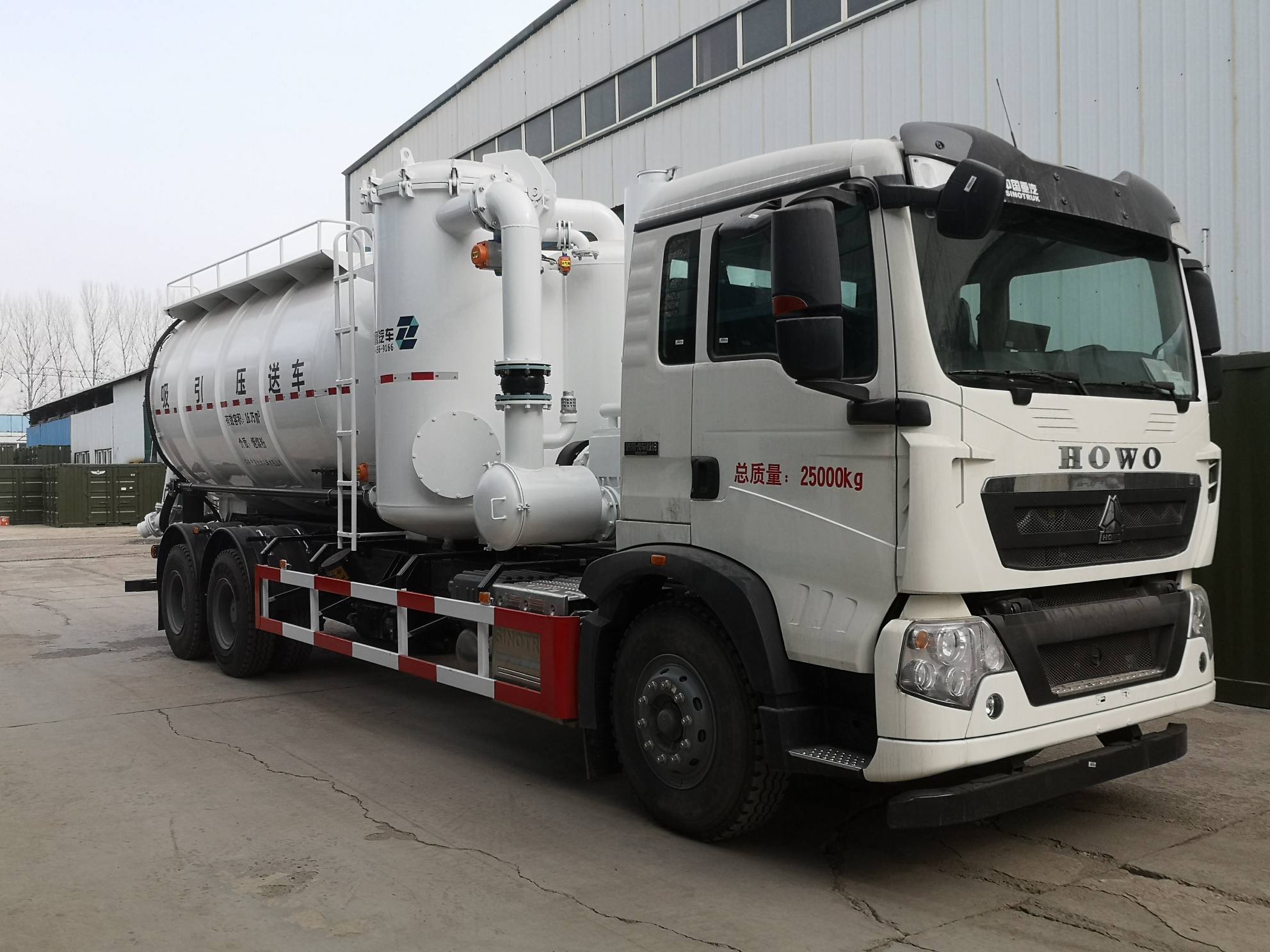

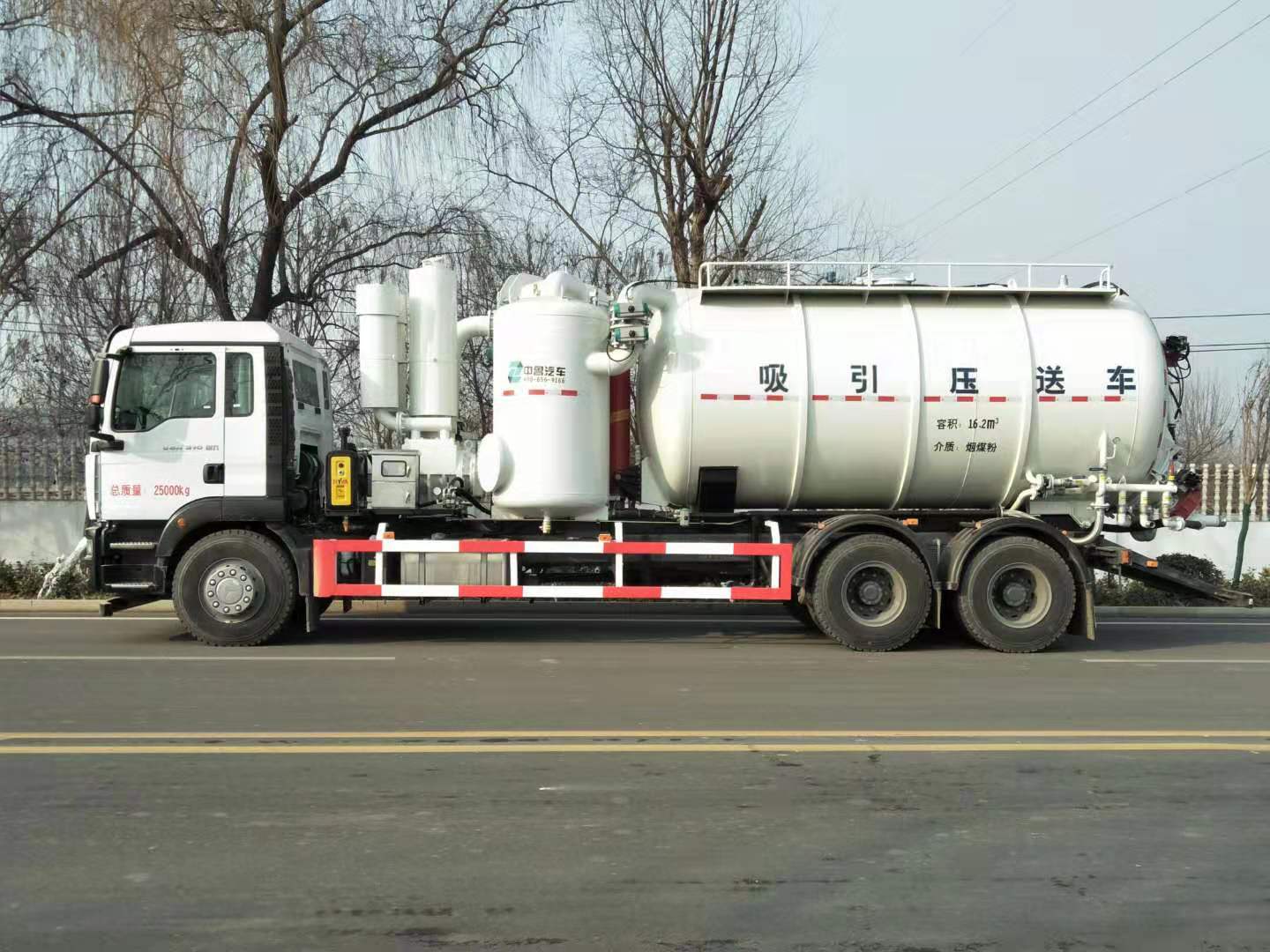

18-cubic meter tank truck
1、The vehicle is capable of handling material temperatures ranging from 0°C to 300°C, offering a wide range of application.
2、The material transfer process is fully sealed, achieving environmentally friendly transportation.
3、The vehicle is equipped with both loading (suction) and unloading (discharge) functions, enabling a contact-free material transfer process.
4、Without an air-assist device, the discharge height can reach up to 20 meters.
The tank is a horizontal cylindrical vessel designed and manufactured in strict compliance with pressure vessel standards. Constructed from Q355B steel, all welded joints undergo visual inspection per relevant codes, with no defects such as cracks, lack of penetration, porosity, or slag inclusion permitted.
The vehicle utilizes a three-tank filtration system — comprising a settling tank, cyclone separator, and filter bag tank — which ensures superior filtration performance and meets environmental objectives.

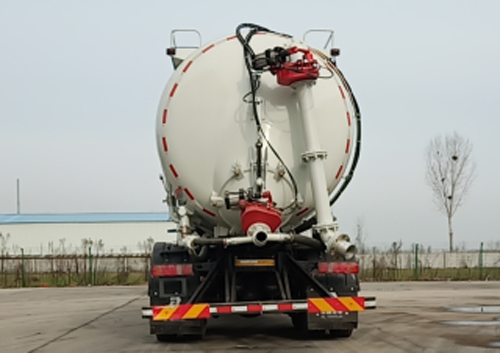

A lifting cylinder is installed at the front of the vehicle tank, while a hydraulically operated rear cover is fitted at the back. The tank can tilt rearward up to 42°, allowing dust to be discharged by gravity.
Technical Specifications
Item | Details |
Chassis Configuration | |
Chassis | Diesel |
Drive Type | 6×4 (3 axles) |
Working Parameters | |
Effective Tank Volume | 18m³ |
Suction Rate | 30–60 t/h (Horizontal distance: 5 m; Vertical depth: 3 m; with 2 elbows) |
Discharge Rate | 30–60 t/h (Horizontal distance: 5 m; Vertical height: 20 m; with 2 elbows) |
Discharge Height (without auxiliary blowing) | 20 m |
Residual Material Rate | ≤0.2% |
Tank Working Pressure | -0.07 ~ +0.2 MPa |
Tank Lifting Angle | 35–42° |
Level Alarm System | RF capacitive type |
Vacuum Pump | |
Max. Vacuum Degree | -78.4 kPa |
Free Air Flow | 48.6 m³/min |
Safety Valve Opening Vacuum | -65 ~ -70 kPa |
Air Compressor | |
Displacement | 10 m³/min |
Max. Pressure | 200 kPa |
Lifting Hydraulic Cylinder | |
Type | Singleacting 3stage telescopic sleeve cylinder |
Rated Working Pressure | 21 MPa |
Total Stroke | 3830 mm |
Hydraulic System | |
Hydraulic Oil Pump Rated Pressure | 20 MPa |
Hydraulic Oil Tank Volume | 70 L |
Key Valves | |
Suction Valve | DN150 disc valve, JIEGAO hardsealed valve |
Discharge Valve | DN125 ball valve, JIEGAO hardsealed valve |
Control System | Multifunction PLC LCD screen or pushbutton operation. Realtime monitoring of vacuum pump / air compressor speed, tank pressure, valve status, etc. Clear, simple and reliable. |
Filter Bag Cleaning | Automatic pulse backflushing during suction (pulse frequency adjustable) |
Note | Components can be customized as per client’s requirements |
