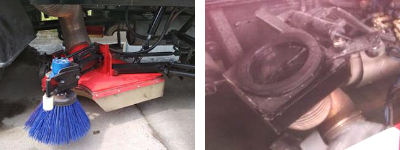

Centrally mounted side suction with hydraulically driven brushes; the suction port is controlled by an electro-hydraulic gate valve switch.

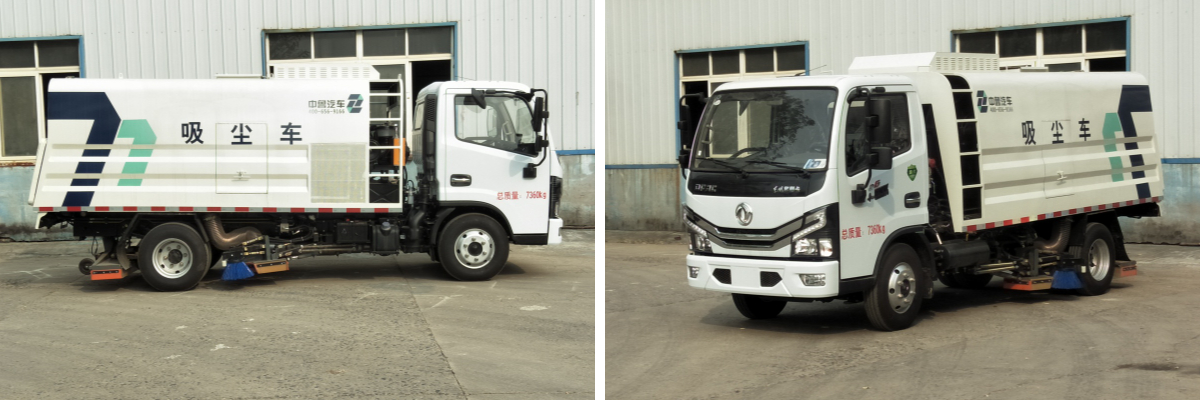

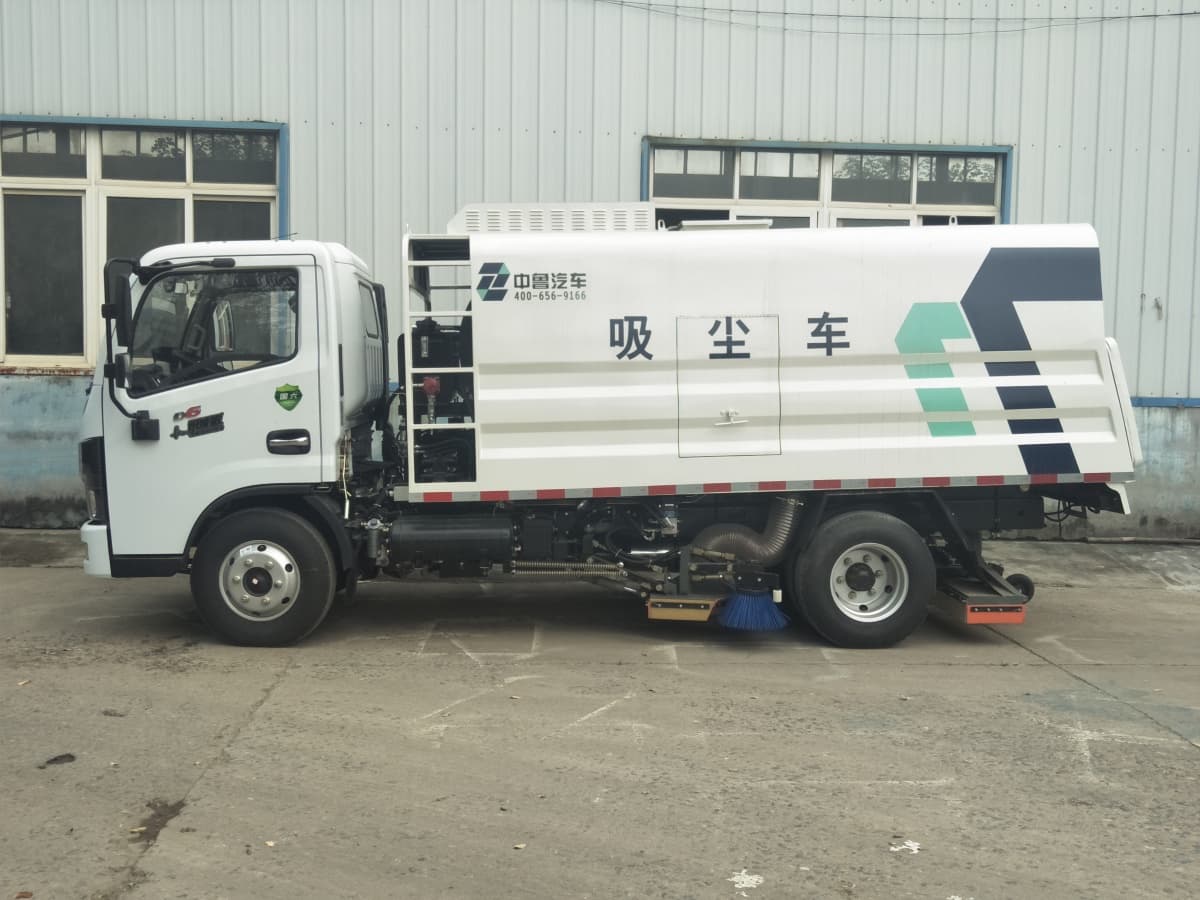

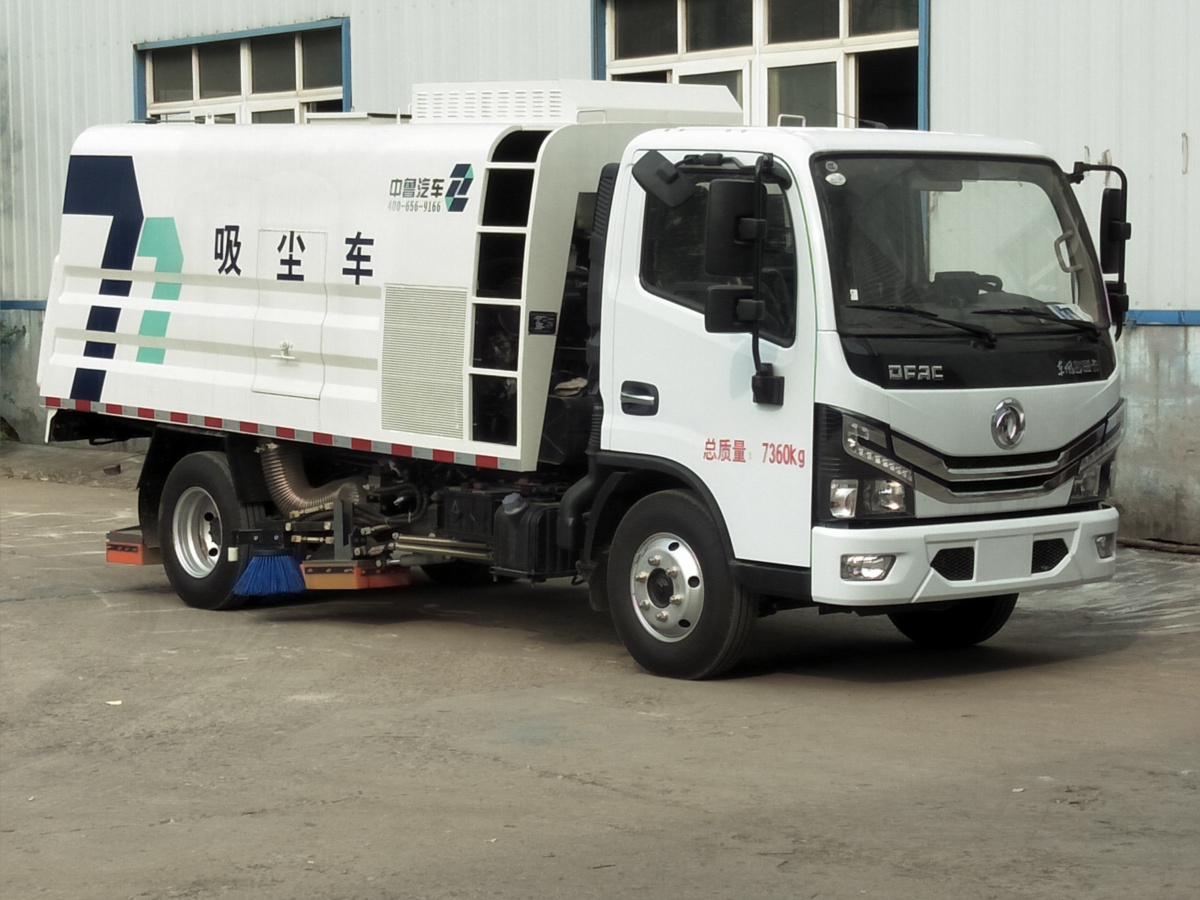

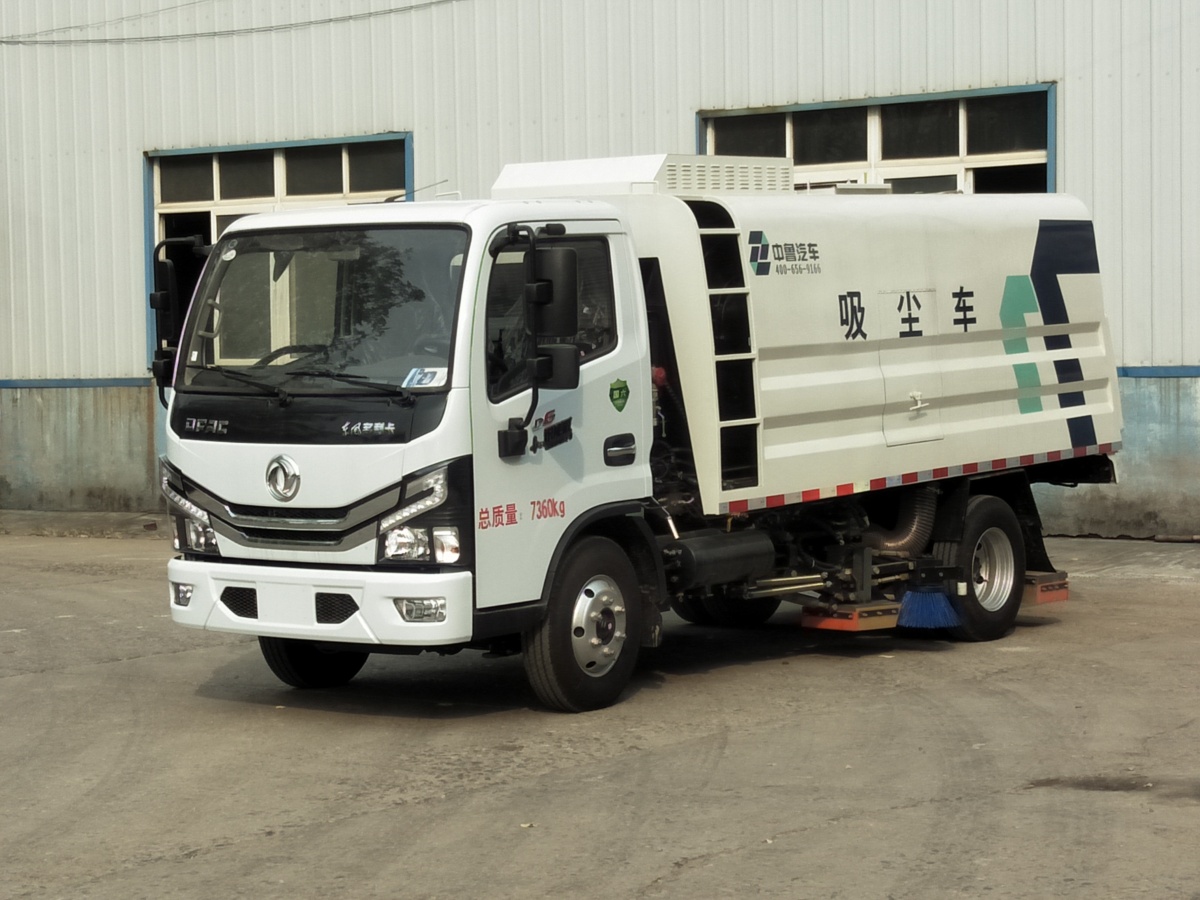

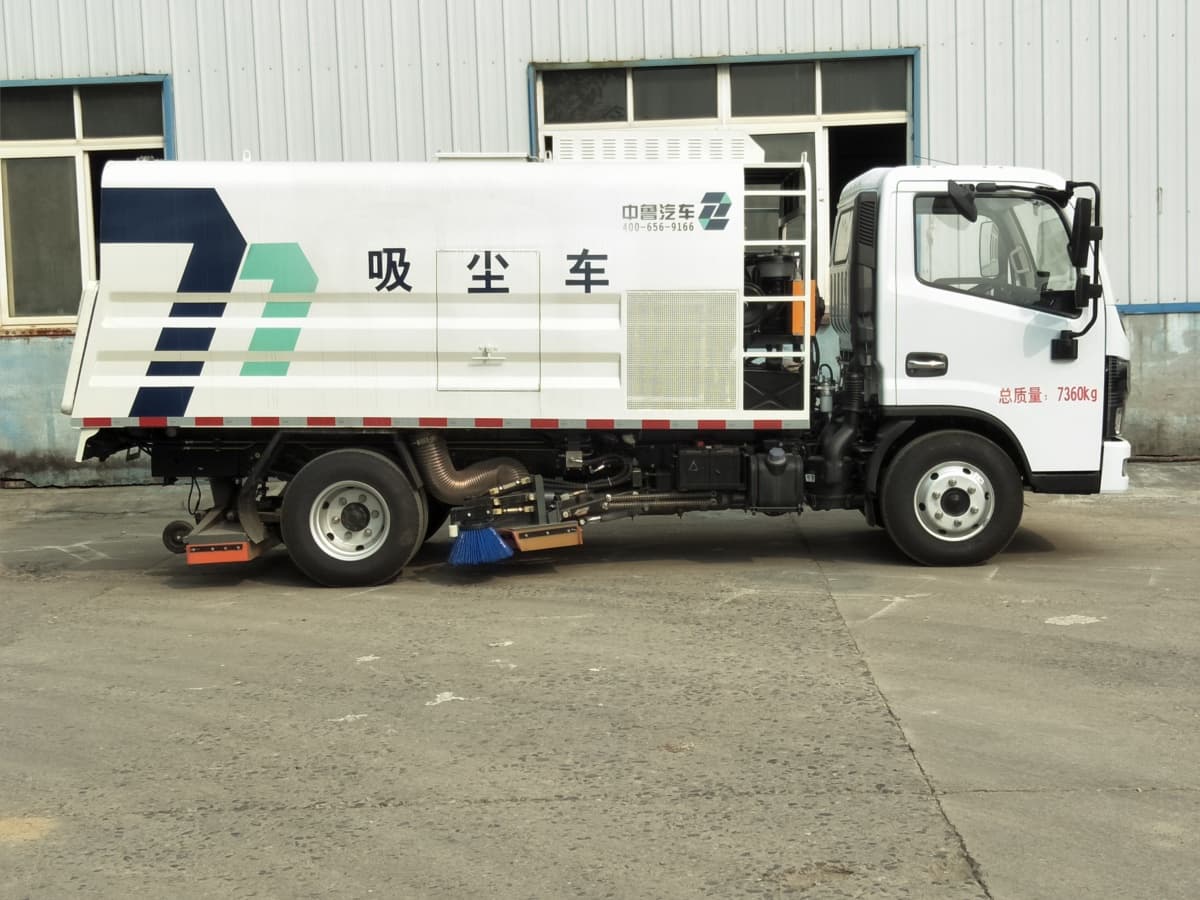

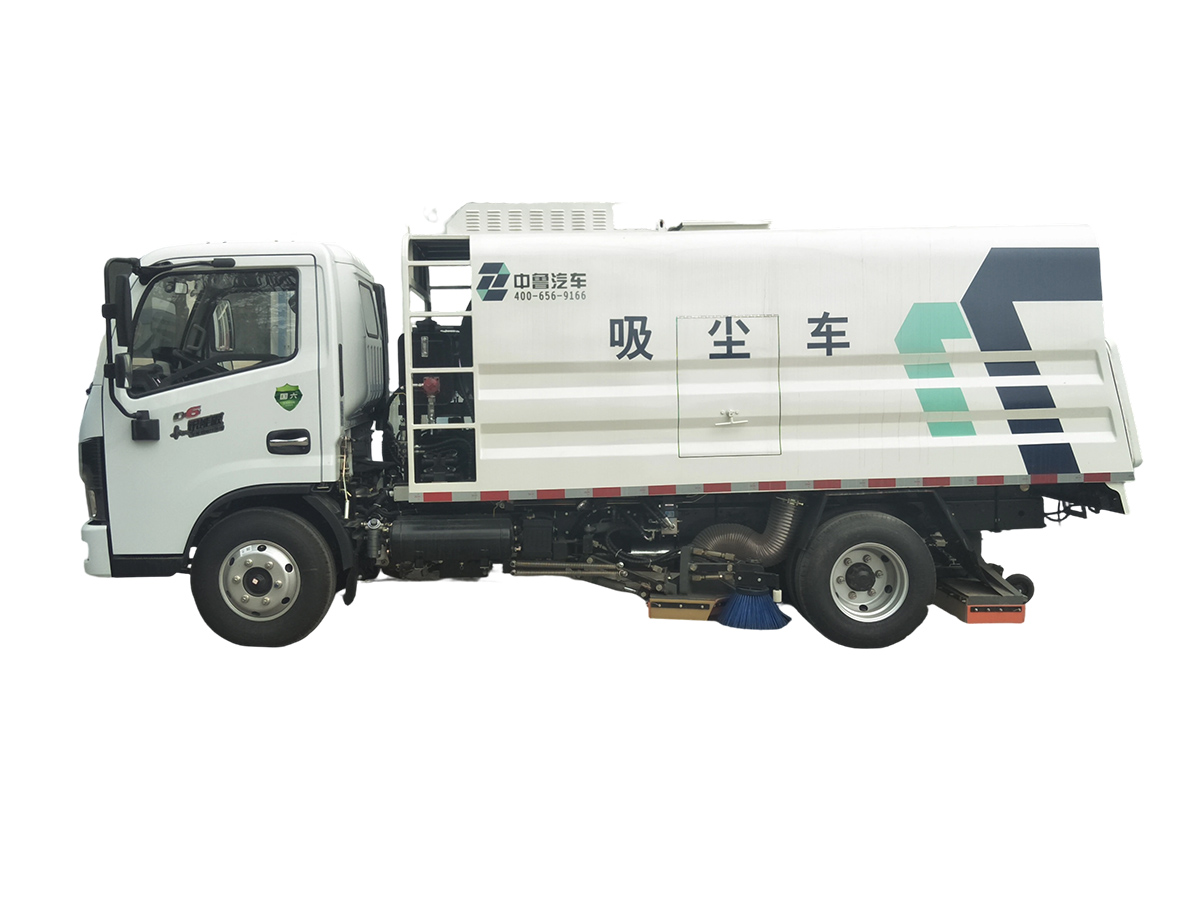

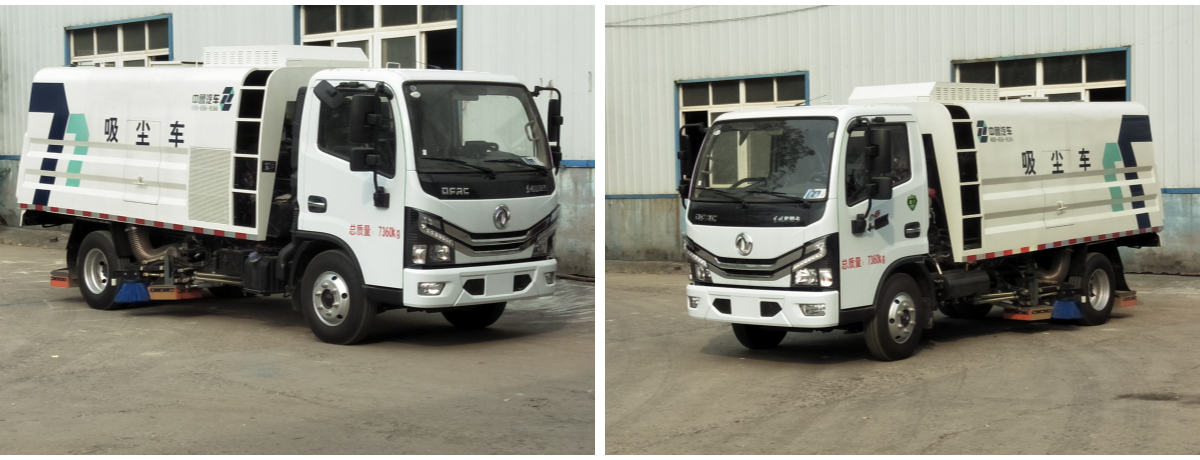

Best Dust Suction Truck
1. Offers broad operational coverage, high suction efficiency, zero secondary dust dispersion, and superior working productivity
2. Operates on the principles of ‘pure suction’ and ‘negative pressure’ dust extraction
3. The preferred solution for environmental sanitation and material recovery applications
4. Suitable for dust-prone sectors including municipal works, highways, steel, cement, coal, non-ferrous metals, ports, stockyards, and warehouses
5. Incorporates a pulse-jet dust removal mechanism enabling automatic filter cleaning with superior efficiency and high regeneration rates
6. Extended continuous operation: Eliminates the need for water spraying to suppress dust, ensuring uninterrupted working time independent of water tank capacity and maintaining high productivity
7. Comprehensive safety provisions: Critical mechanical, hydraulic, and electrical components incorporate protective measures to minimise risks of equipment damage and personal injury from operational errors
8. Wide applicability and high flexibility, suitable for sweeping operations and material recovery across diverse working conditions. Side suction port with dust-free brush facilitates kerbside waste collection without dust dispersion
Product Details
The Best Dust Suction Truck is powered by an auxiliary engine that drives the fan and all working devices. It adopts a vacuum suction and sweeping combination system with dry dust removal, full airflow filtration, and emission without secondary pollution. The main suction nozzle, located at the rear of the vehicle, features a pure suction design with an optional built-in roller brush. On both sides, centrally mounted suction nozzles are equipped with disc brushes that can operate independently on either side or work in conjunction with the main nozzle. The disc brushes are height-adjustable to maintain cleaning performance as they wear, while the side nozzles directly suction debris into the garbage container, ensuring dust-free operation. They are also equipped with collision-avoidance and automatic reset functions. The vehicle uses a high-efficiency centrifugal fan with fully filtered intake and exhaust, delivering an eco-friendly, dust-free working environment. An automatic clutch ensures smooth start-up and shutdown between the auxiliary engine and fan. The filtration system is designed with both online automatic dust cleaning and offline reverse-blowing regeneration, enhancing dust collection efficiency and simplifying maintenance. The garbage container is hydraulically lifted and rear-discharged, with balance valves and safety rods for secure and reliable operation. Additionally, the hydraulic system includes a manual pump for emergency use, further improving service convenience. Unlike traditional models, the truck is designed without side canvas or rubber skirts, ensuring a more streamlined and efficient structure.
Parameters
General Parameters | Dimensions (L × W × H) (mm) | 5995 × 1980 × 2460 |
Curb Weight (kg) | 5240 | |
Gross Vehicle Weight (kg) | 7360 | |
Max. Speed (km/h) | 110 | |
Chassis Parameters | Chassis Model | EQ1075SJ3CDF |
Chassis Manufacturer | Dongfeng Motor Co., Ltd. | |
Engine Model | Q28-130E60 | |
Engine Power (kW) | 96 | |
Emission Standard | China VI | |
Wheelbase (mm) | 3308 | |
Drive Type | 4 × 2 | |
Special Parameters | Auxiliary Engine Model | Jiangxi JX493G3 |
Auxiliary Engine Power (kW) | 57 | |
Number of Filter Cartridges | 9 | |
Filter Arrangement | Vertical | |
Garbage Box Volume (m³) | 5 | |
Max. Cleaning Width (m) | 2.8 | |
Operating Speed (km/h) | 5–15 | |
Max. Suction Particle Size (mm) | 100 | |
Working Temperature (°C) | -30℃ ~ +50℃ | |
Fuel Consumption for Sweeping (L/10,000m²) | 1.3 | |
Max. Cleaning Capacity (m²/h) | 42,000 | |
Suction Efficiency (%) | 98 |
Features
Number | Performance Characteristics | Remarks |
1 | Cleaning Method: Adopts a vacuum negative pressure pure suction system, powered by an auxiliary engine-driven fan, combining vacuum dust extraction, suction and sweeping, dry dust removal, and fully filtered airflow discharge. | Equipped with a high-efficiency centrifugal fan, the vehicle features a three-stage dust removal design consisting of gravity settling, inertia blocking, and coarse-to-fine filtration inside the container. The fan ensures fully filtered air intake and exhaust, delivering an environmentally friendly, dust-free operation. |
2 | Box Structure and Materials: The vehicle’s container adopts a corrugated exterior design, made of stainless steel. The garbage box features a streamlined shape with uniform force distribution, ensuring strong structural performance and an attractive appearance. It is designed with front and rear compartments, a three-stage filtration system, and vertically mounted filter cartridges. This setup allows for thorough garbage disposal while making filter inspection and replacement more convenient. | Box Wall Thickness: 4 mm |
3 | Professional high-efficiency centrifugal fan with large air volume. The fan is positioned at the end of the air duct, ensuring that all dust is fully filtered before the airflow enters. This guarantees clean air passes through the fan, preventing dust emission from the outlet and eliminating additional wear. | High-precision filtration system with a filtering accuracy of up to 2 μm, fully meeting PM2.5 emission standards. |
4 | Nozzle Structure: The vehicle adopts an independent main and auxiliary suction nozzle design, with the main and side nozzles separated. They can be operated individually or in combination to adapt to different road conditions.
|
（Pure suction operation） |
The dust-control disc brush side-suction mechanism is mounted on the side nozzle. With a compact effective working diameter, it directs dust and debris directly into the nozzle, ensuring dust-free operation during sweeping. It is also equipped with an anti-collision automatic reset function.
| Designed for independent or linked operation on the left and right sides, ensuring flexible use during vehicle operation. It allows either left-side or right-side sweeping independently, keeping the mechanism on the fast-lane side within the vehicle body to reduce lane occupation, while also enabling simultaneous sweeping on both sides to increase cleaning width. | |
5 | Monitoring System: High-definition cameras and night lights are installed on both the left and right rear sides of the vehicle, providing the driver with clear visibility during operation. A quad-split HD display allows free switching, enabling the operator to conveniently monitor the front, rear, left, and right surroundings from inside the cab. The system adopts CAN bus control with an LCD display and a user-friendly centralized push-button control panel. It is also equipped with a voice alarm device and supports fault self-diagnosis functionality. |

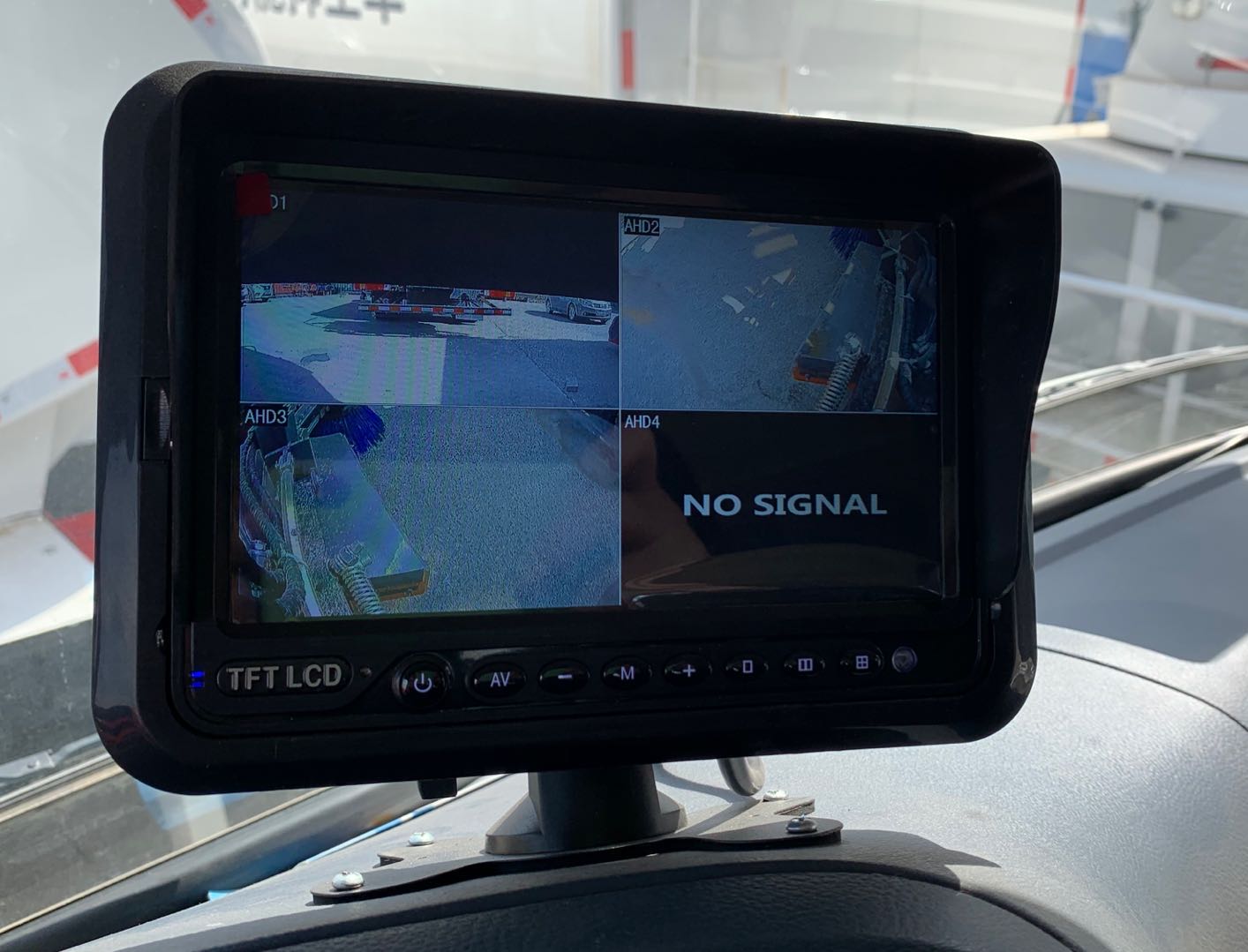

Monitoring Display |
6 | Hydraulic System: The hydraulic system uses imported brand valve groups (Taiwan Beifujing), arranged neatly for easy maintenance. It ensures reliable operation, responsive and efficient movements, with no creeping issues in moving components. All hydraulic fittings adopt a clamping sleeve design, and every hydraulic pipeline joint is formed in one step by a tube-end forming machine, completely eliminating leakage caused by welded joints. |

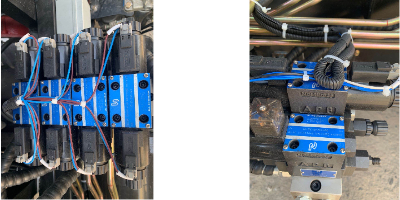

Taiwan Beifujing Hydraulic Valve Group |

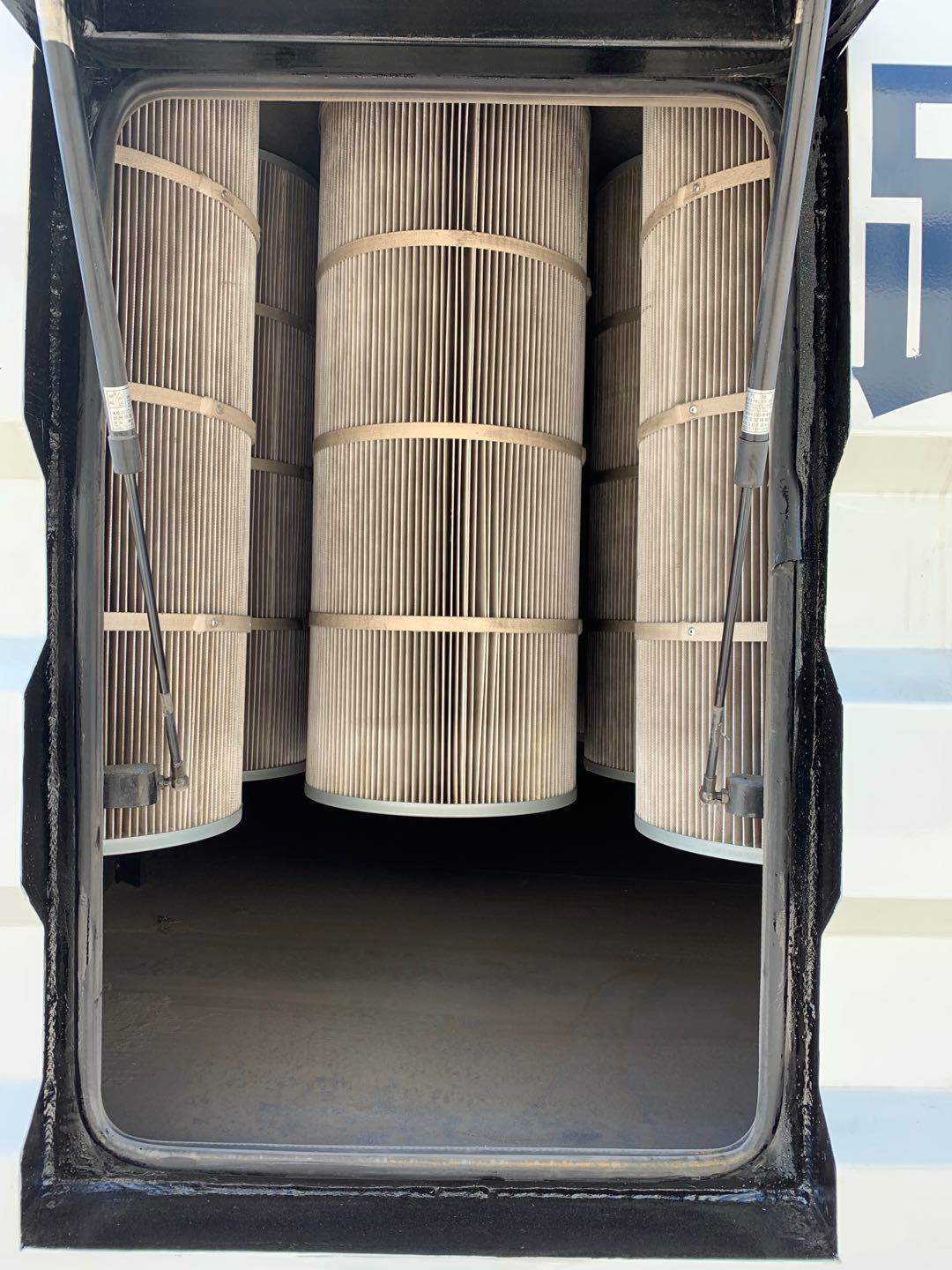

7 | Filter Cartridges: The filter cartridges are made of imported membrane-coated nonwoven fabric, offering recyclability, waterproofing, acid resistance, and tear resistance, with a filtration precision of up to 2 μm. They feature unique pulse back-blowing technology, giving them a service life of 1–3 years and ensuring they are not considered consumable parts. A total of nine cartridges are vertically arranged, providing excellent back-blowing performance, preventing dust accumulation, reducing system resistance, and maintaining long-lasting suction power. Replacement is quick and convenient, with top-mounted bolt connections allowing cartridges to be directly removed from the filter chamber. |
|
8 | Pulse Dust Cleaning System: The air pump is sourced from a well-known domestic manufacturer, ensuring superior performance and stable quality. The system offers both online and offline back-blowing functions: it can automatically perform back-blowing during vehicle operation or use an external air source for cartridge cleaning. The entire process generates no dust emissions, ensuring convenience and environmental protection. Compressed air pulse jet cleaning is automatically controlled (once every 15 seconds), delivering reliable operation, high dust removal efficiency, and stable suction performance of the vehicle. |

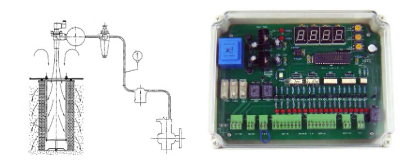

Automatic Pulse Dust Cleaning System |
